How do I measure for a venetian blind?

Measuring for a Venetian blind

Recess Measuring Instructions

Step 1: Measure the width of your recess in three locations. The top, middle and bottom. Record the smallest measurement.

wood_recess

Step 2: Measure the drop of your recess in three locations. The left, middle and right. Record the smallest measurement.

Step 3: Use the smallest measurement for the width and the drop when placing your order. Use the ‘Recess’ option when placing your order.

Hint: Check your window recess for any obstructions such as tiles or picture rails. If you do have an obstruction, make sure you measure off this point. A deduction of 12mm will be made to the overall width to ensure an easy, yet snug fit.

Blind Size Measuring Instructions

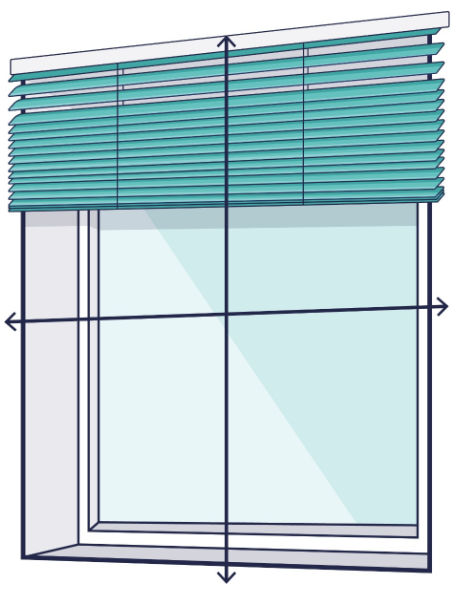

Step 1: Measure the outside of your window recess from one side to the other, from the point you want the edge of the blind to start to the other.

exact_wood

Step 2: Measure the outside of your window recess from the top to the bottom, from the height at which you want the headrail to sit, down to the point you want the bottom bar to stop.

Step 3: Use the ‘Blind Size’ option when placing your order.

Hint:  We recommend a minimum of a 70mm overlap past the window recess, that’s 35mm on each side. This ensures total coverage of the recess. This blind will be made to your exact measurements with no deductions.
